Description

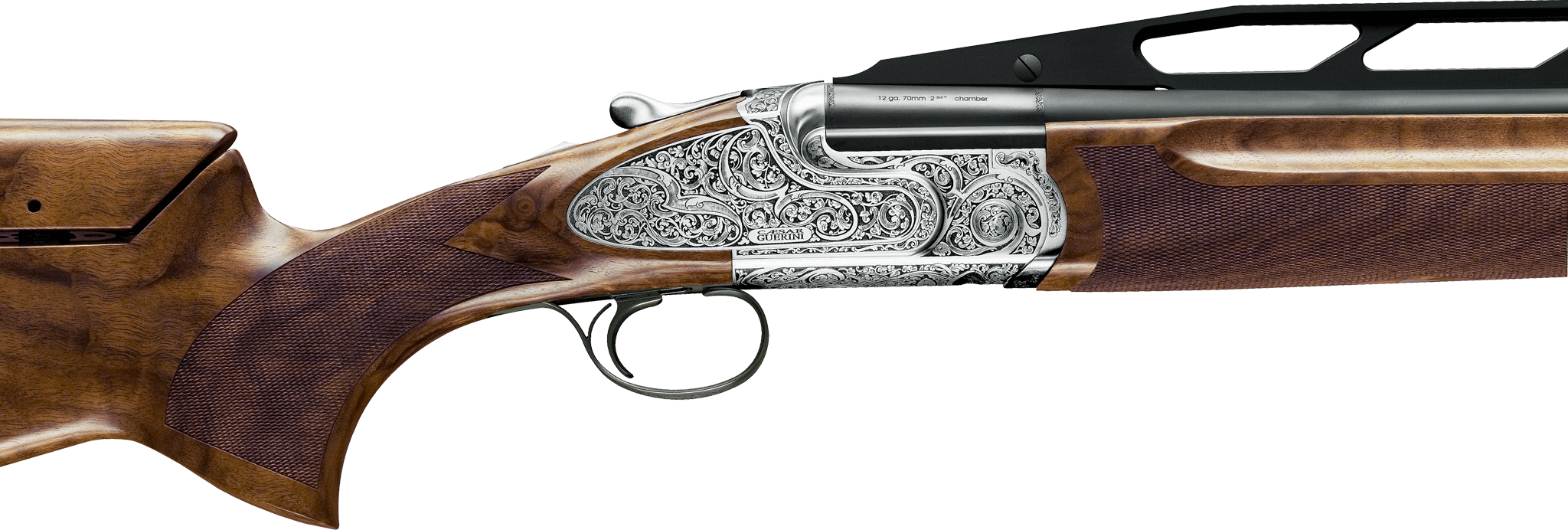

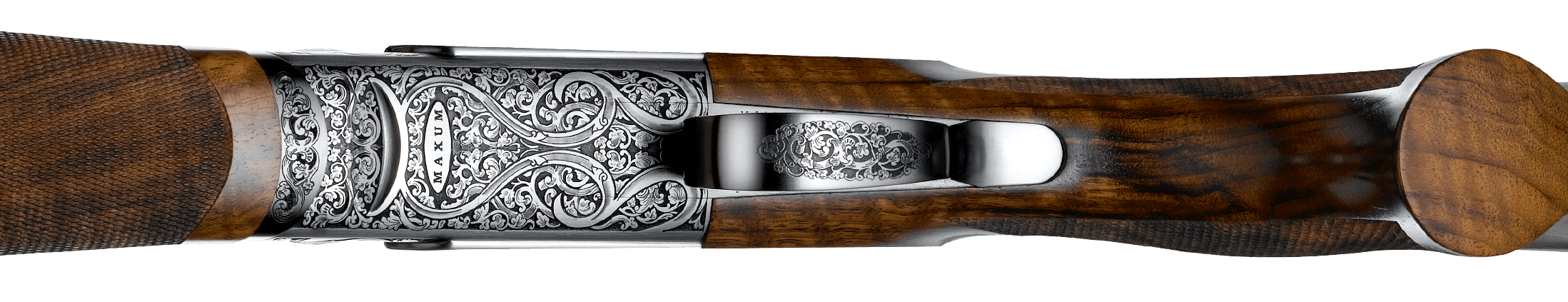

With comments like ”There is nothing about this gun I do not like”, “Scary how well this gun shoots”, and “Wow! What a dream gun” it is obvious the Outdoor Life Magazine test team feels the same as we do about the Maxum Trap shotgun. They felt strongly enough to award it the prestigious 2007 Editors Choice award for best shotgun. The coin finish action is painstakingly hand polished, then engraved with an original design by famous master engraver Dario Cortina. The result is a stunning, deep relief scroll and ribbon, full coverage engraved action that is enhanced by an upgraded extra deluxe grade of Turkish walnut. The Maxum Trap excels on the trap line too. The Dynamic Tuning System, featuring an adjustable rib and comb system, allows any shooter to customize the gun to their shooting style. As with all of our trap models, the Maxum can be ordered with a factory release trigger and left hand stock as an option.
Specifications
ModelMaxum Trap Unsingle Maxum Trap Over-and-Under Maxum Trap Top Single
Gauge121212
Barrel length32” (81cm), 34” (86cm) 30” (76cm), 32” (81cm) 34” (86cm)
Avg. Weight**8lbs. 14oz., 9lbs 8lbs. 13oz., 8lbs 15ozs8lbs. 14ozs
Receiver finishHand polished coin finish with Invisalloy™ protective finishHand polished coin finish with Invisalloy™ protective finishHand polished coin finish with Invisalloy™ protective finish
StockMonte Carlo with DTS 4 way adjustable comb Monte Carlo with DTS 4 way adjustable comb Monte Carlo with DTS 4 way adjustable comb
Stock Finish Hand rubbed oil Hand rubbed oil Hand rubbed oil
Checkering 26 lines per inch26 lines per inch26 lines per inch
Recoil Pad Ventilated soft black rubber Ventilated soft black rubber Ventilated soft black rubber
Chamber 2.75" 2.75" 2.75"
Top Rib 12mm tapered rib, DTS adjustable from 60/40 to 12012mm tapered rib, DTS adjustable from 60/40 to 10012mm tapered rib, DTS adjustable from 60/40 to 100
Rib Height*25mm25mm25mm
Center Rib N/A Ventilated N/A
Forcing Cones 5" Long “DuoCon” 5" Long “DuoCon” 5" Long “DuoCon”
Avg. Bore .735, “MAXIS” bore, chrome lined .735, “MAXIS” bore, chrome lined .735, “MAXIS” bore, chrome lined
Chokes3 “MAXIS” competition chokes, M, IM, and Full 5 “MAXIS” competition chokes, LM, M, IM, LF, and Full. 3 “MAXIS” competition chokes, M, IM, and Full
Sight(s)White Bradley style front, Silver center bead White Bradley style front, Silver center bead White Bradley style front, Silver center bead
Fore-endSemi-beavertail with finger grooves Semi-beavertail with finger grooves Semi-beavertail with finger grooves
TriggerNew DTS trigger system with two trigger pull weight options, take up, over travel and length of pull adjustments. Factory selective release triggers available in single and double release for 12g.New DTS trigger system with two trigger pull weight options, take up, over travel and length of pull adjustments. Factory selective release triggers available in single and double release for 12g.New Selective DTS trigger system with two trigger pull weight options, take up, over travel and length of pull adjustments. Factory selective release triggers available in single and double release for 12g.
SafetyManual (Automatic as an option)Manual (Automatic as an option)Manual (Automatic as an option)
AccessoriesStock and trigger wrench, choke case, friction choke wrenchStock and trigger wrench, choke case, friction choke wrenchStock and trigger wrench, choke case, friction choke wrench
CasePlastic hard case with fit interior and velvet stock sleeve and barrel sleevePlastic hard case with fit interior and velvet stock sleeve and barrel sleevePlastic hard case with fit interior and velvet stock sleeve and barrel sleeve
Overall length of gun w/ chokes50.25” (32” barrels), 52.25” (34” barrels)48.25” (30” barrels), 50.25” (32” barrels)52.25” (34” barrels)
*Measured from the lowest point of the barrel.
**Weights may vary based on wood density.
Stock Dimensions
ModelMaxum Trap
Drop at comb**1.5" (adjustable)
Drop at Monte Carlo 1.625"
Drop at heel 2.5"
Length of pull*14.75" (adjustable)
Cast at heel .15"
Cast at toe .315"
Pitch
Breech to comb 7.75"
Reach*4" (adjustable)
All Measurements are subject to change without notice and are based on average measurements.
*Measured from the center of trigger adjustment. **With comb in lowest position.
MSRP Pricing
ItemDescriptionMSRP
E34167Maxum Trap 12g 34" Barrels - Unsingle$11,525
E34887Maxum Trap 12g, 32" 34" Barrels Combo - Unsingle$14,860
Additional Charge for Left Hand Stock$295
*All Trap models are 12 gauge only. Pricing is subject to change. If your desired configuration is not listed, please contact your dealer for a Special Order.
