Description

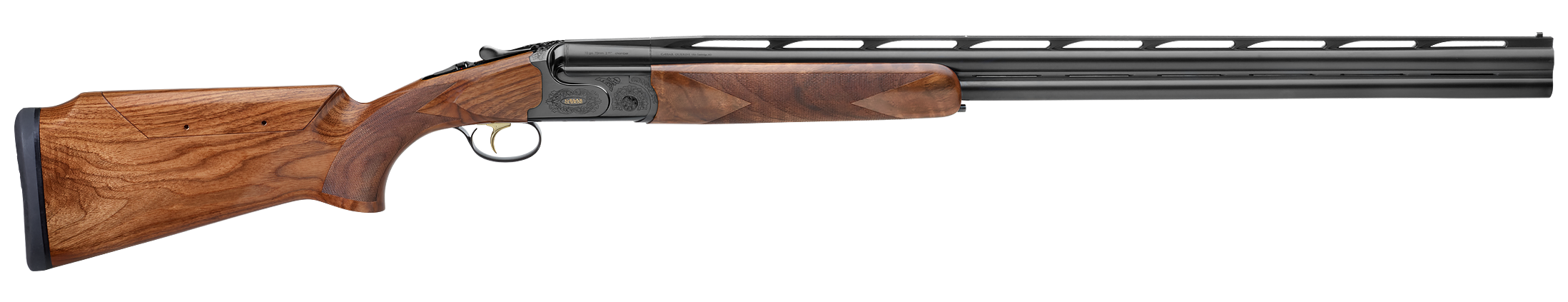

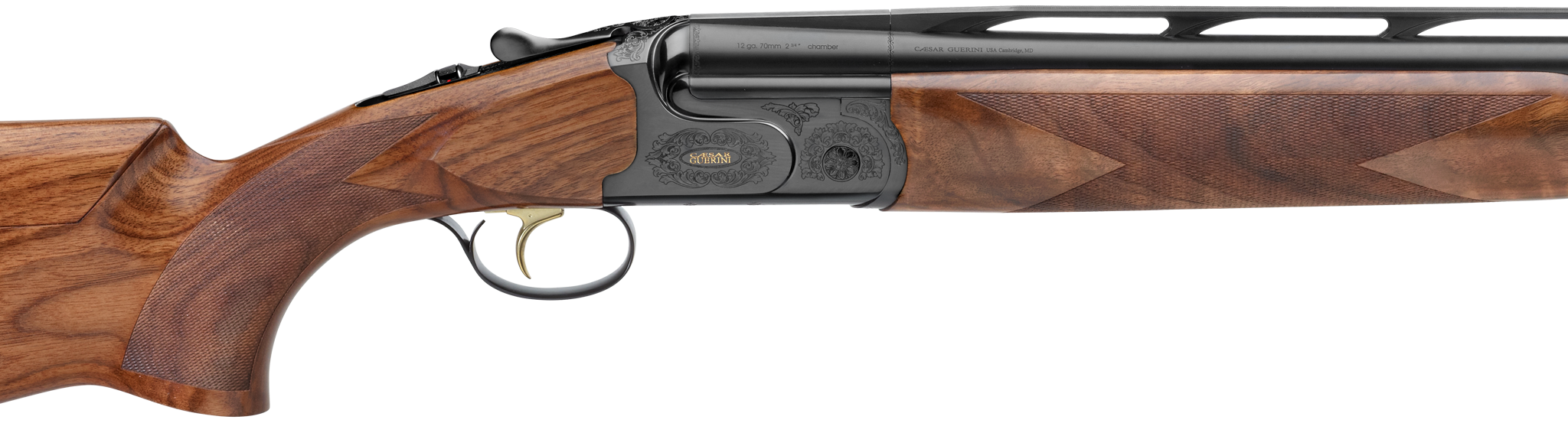

The Summit Ascent is everything you want from a modern sporting clays shotgun. The 10mm high, tapered top rib in combination with a Monte Carlo style stock creates a more comfortable upright shooting position and improved target visibility. This makes the Ascent particularly well suited for the sporting clays shooter who pre-mounts their gun before calling for the target. Importantly, the tapered top rib is designed to provide a flat shooting 50/50% point-of-impact, making it ideal for sporting clays. Additionally, the stock incorporates our DTS adjustable comb allowing a wide variety of shooters to dial in their gun fit precisely. The mass in the stock and barrels are engineered so the gun will balance perfectly. With a long list of winning features, the Summit Ascent is taking sporting clays to the next level.
Specifications
ModelSummit Ascent
Gauge12
Barrel length30" (76cm), 32" (81cm)
Avg. Weight**8lbs. 4oz., 8 lbs. 6oz.
Receiver finishSatin blued finish with Invisalloy™ clear protection
Stock FinishHand rubbed oil
Checkering26 lines per inch
Recoil PadBlack rubber
Chamber2 3/4"
Top RibWidth 11mm - 8mm Tapered
Rib Height*10mm Fixed
Center RibVentilated
Forcing Cones5" DuoCon
Avg. Barrel Weight30"-1.49kg (3.28lbs.) 32"-1.52kg (3.35lbs.)
Avg. Bore.735, Chrome lined
Chokes6 MAXIS competition chokes
Sight(s)White Bradley style front Silver center bead
Fore-endRounded
TriggerNew DTS trigger system with two trigger pull weight options, take up, over travel and length of pull adjustments. Factory selective release triggers available in single and double release for 12g.
SafetyManual (Automatic as an option)
AccessoriesStock and trigger wrench, choke case, friction choke wrench
CasePlastic hard case with fit interior and velvet stock sleeve and barrel sleeve
*Measured from the lowest point of the barrel.
**Weights may vary based on wood density.
Overall length of gun w/ chokes48.25” (30” barrels), 50.25” (32” barrels)
Stock Dimensions
ModelSummit Ascent 12
Drop at comb**1.625" (adjustable)
Drop at Monte Carlo2"
Drop at heel2.5"
Length of pull*14.75" (adjustable)
Cast at heel .15"
Cast at toe .315"
Pitch
Breech to comb7.25"
Reach*4" (adjustable)
All Measurements are subject to change without notice and are based on average measurements.
*Measured from the center of trigger adjustment.
**With comb in the lowest position.
MSRP Pricing
ItemDescriptionMSRP
A2H145Summit Ascent Sporting 12g 30" Barrels$6,295
A2H155Summit Ascent Sporting 12g 32" Barrels$6,295
Additional Charge for Left Hand Stock$295
*Pricing is subject to change. If your desired configuration is not listed, please contact your dealer for a Special Order.
