Description

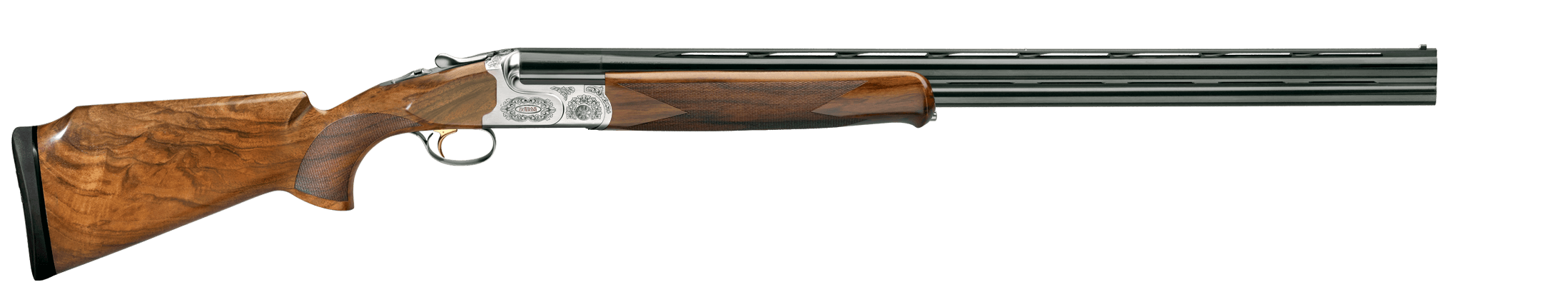

The Summit Compact has all of the same features as our Summit Sporting model, with the added benefit to shooters who require a shorter 13.9″ (adjustable) length of pull and a Monte Carlo stock. The Summit Compact is an efficient tool designed to accomplish only one task: breaking targets. Every feature is carefully conceived and executed. The receiver is designed to withstand a lifetime of competitive shooting. When you compare the thick receiver walls and large bearing surfaces with any other over and under, it becomes clear this gun is designed for durability. No matter how unlikely they are to wear out, the trunnions and locking lugs can be easily replaced. The stock includes palm swell, cast off, and toe rotation for either a right or, as an option, a left hand shooter. Each barrel length is designed to balance perfectly while offering stability, and the 12 gauge models feature our proven Maxis Bore and Choke System.
Specifications
Model | Summit Compact |
---|---|
Gauge | 12 |
Barrel length | 28" (71cm), 30" (76cm), 32" (81cm) |
Avg. Weight** | 7lbs. 13oz., |
Receiver finish | Nickel with Invisalloy™ protective finish |
Stock Finish | Hand rubbed oil |
Checkering | 26 lines per inch |
Recoil Pad | Black rubber |
Chamber | 2 3/4" |
Top Rib | Width 10mm to 8mm Tapered |
Rib Height* | 6mm |
Center Rib | Ventilated |
Forcing Cones | 5" DuoCon |
Avg. Barrel Weight | 30"-1.49kg (3.28lbs.), 32"-1.52kg (3.35lbs.) |
Avg. Bore | .735, Chrome lined |
Chokes | 6 MAXIS competition chokes |
Sight(s) | White Bradley style front Silver center bead |
Fore-end | Schnabel |
Trigger | DTS trigger system with two trigger pull weight options, take up, over travel and length of pull adjustments. Factory selective release triggers available in single and double release for 12g. |
Safety | Manual (Automatic as an option) |
Accessories | Stock and trigger wrench, choke case, friction choke wrench |
Case | Plastic hard case with fit interior and velvet stock sleeve and barrel sleeve |
Overall length of gun w/ chokes | 45.25” (28” barrels), 47.25” (30” barrels), 49.25” (32” barrels) |
*Measured from the lowest point of the barrel. **Weights may vary based on wood density. |
Stock Dimensions
Model | Summit Compact 12 |
---|---|
Drop at comb | 1.5" |
Drop at Monte Carlo | 1.75" |
Drop at heel | 2.5" |
Length of pull | 13.9" (adjustable) |
Cast at heel | 0.25" |
Cast at toe | 0.5" |
Pitch | 7° |
Breech to comb | 7.0" |
Reach* | 3.5" (adjustable) |
All Measurements are subject to change without notice and are based on average measurements. *Measured from the center of trigger adjustment. |
MSRP Pricing
Item | Description | MSRP |
---|---|---|
A21134C | Summit Compact 12g 28" Barrels | $4,975 |
A21144C | Summit Compact 12g 30" Barrels | $4,975 |
Additional Charge for Left Hand Stock | $295 | |
*Pricing is subject to change. If your desired configuration is not listed, please contact your dealer for a Special Order. |
